สะพานปรับระดับโหลดสินค้าระบบไฟฟ้า

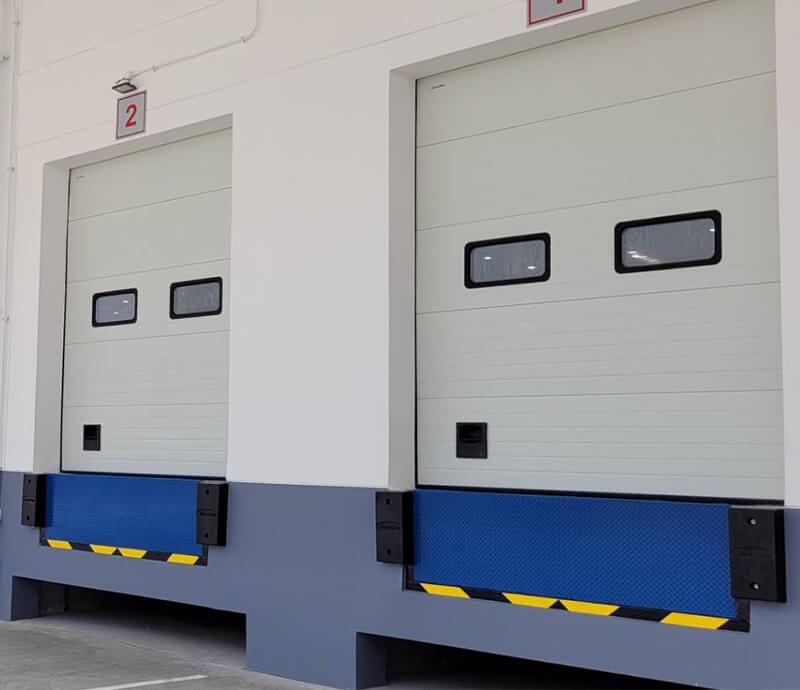

Electrohydraulic Dock Leveler with Hinged Lip สะพานปรับระดับโหลดสินค้าระบบไฟฟ้า ออกแบบให้ใช้ไฟฟ้าในการควบคุมการทำงาน มีไฮโดรลิคในการยกตัวขึ้น เพื่อปรับระดับความสูงให้เหมาะสมตามกับการใช้งานของรถขนส่งแต่ละคันได้ มีข้อดีคือใช้งานง่าย สะดวก และง่ายต่อการดูแลรักษา

Feature

Self-cleaning hinges between the leveler and lip;
Ramp length is 400 mm (can be optionally increased to 500 mm);
When working with a truck having skewed platform, the leveler can tilt sideways to 100 mm;
Due to the yellow-black signal strip, one can see that the platform is located above the level of the ramp;
The surface is made of lentil sheet to provide a better adhesion of the forklift wheel;
The lip supports ensure a safe transverse movement on the leveler in the closed position;
The safety system instantly stops the hydraulic leveler in the case of hose breakage or in case of unauthorized departure of the car during loading/unloading works;
Side airbags prevent the staff feet getting into the gap between the leveler and the pit during operation;
Locking mechanism (repair backup) provides a safe leveler maintenance and repair.

Specification

Dimensions / Features
Length, mm	2022 / 2500 / 3000 / 3500 / 4000 / 4500
Width, mm	1800 / 2000 / 2200
Working rage
• above the dock, mm	0-550 mm
• below the dock, mm	0-350 mm
Colour*	Signal blue (RAL 5005)
Amount of lift cylinders
• Standard	1
• Upon request	2

* Power coating with preliminary shot blasting.

Performance
Load capacity	6000 kg / 10000 kg
Motor hydraulic unit	0,75 kw
Supply voltage	380V, 3 phases
Control voltage	24V
Control unit protection class	IP54
Working fluid	Mobil DTe10 eXCEL
Class of surface cleaning before painting	SA2
Thickness of painted layer	60-90 micron
Operation temperature range	from -30 to 50 °С

Package
	Standard	Option
Mounting type	Embedded / Suspended	Other upon request
Colour	Signal blue (RAL 5005)	Other upon request
Lip	Length - 400 mm	Length-500 mm, segmented lip, tapered lip
Hydraulic system	1 lift cylinder, 1 control cylinder	2 lift cylinders, low temperature oil-50°С
Bumpers		See page 29
Seal	PVC-seal along perimeter	For dock levelers > 3000 mm
Heat insulation		Polyurethane foam insulation under upper deck
Load capacity	6000 / 10000 kg	Other upon request
Working range	From-350 to 550 mm	Other upon request

Construct and size

1. Platform cover
2. Lip
3. Frame
4. Side curtain airbags
5. Signal black and yellow stripes
6. Hydraulic Pump
7. Lifting cylinder
8. Cylinder lip
9. Backup repair
10. Control unit

Dock levelers are covered with embossed steel sheet with a thickness of 6-8 mm, where the embossing height is 0,6-2,4 mm. Dock levelers can be manufactured with embossed steel sheet with a thickness of 6 mm where the embossing height is 0.6-1.8 mm, if these are intended for loading and unloading operations using a standard forklift. Dock levelers can be also produced with embossed steel sheet of 8 mm thickness where the embossing height is 0.8-2.4 mm, if these are intended to be used with high point load equipment (eg. electric stackers). There might be a potential distortion of the platform top sheet, which does not affect leveler operation. The lip is made of embossed steel sheet with 12 mm thickness, where the embossing height is 1,2-3,6 mm. The longitudinal beams may be made of 100/120 mm or L-shaped profile with dimensions 140x40x4 mm, the frame — 100/120 mm. In case when the length of the platform is greater than 3500 mm, the longitudinal beams and frame are made of I-beam 120 mm.
